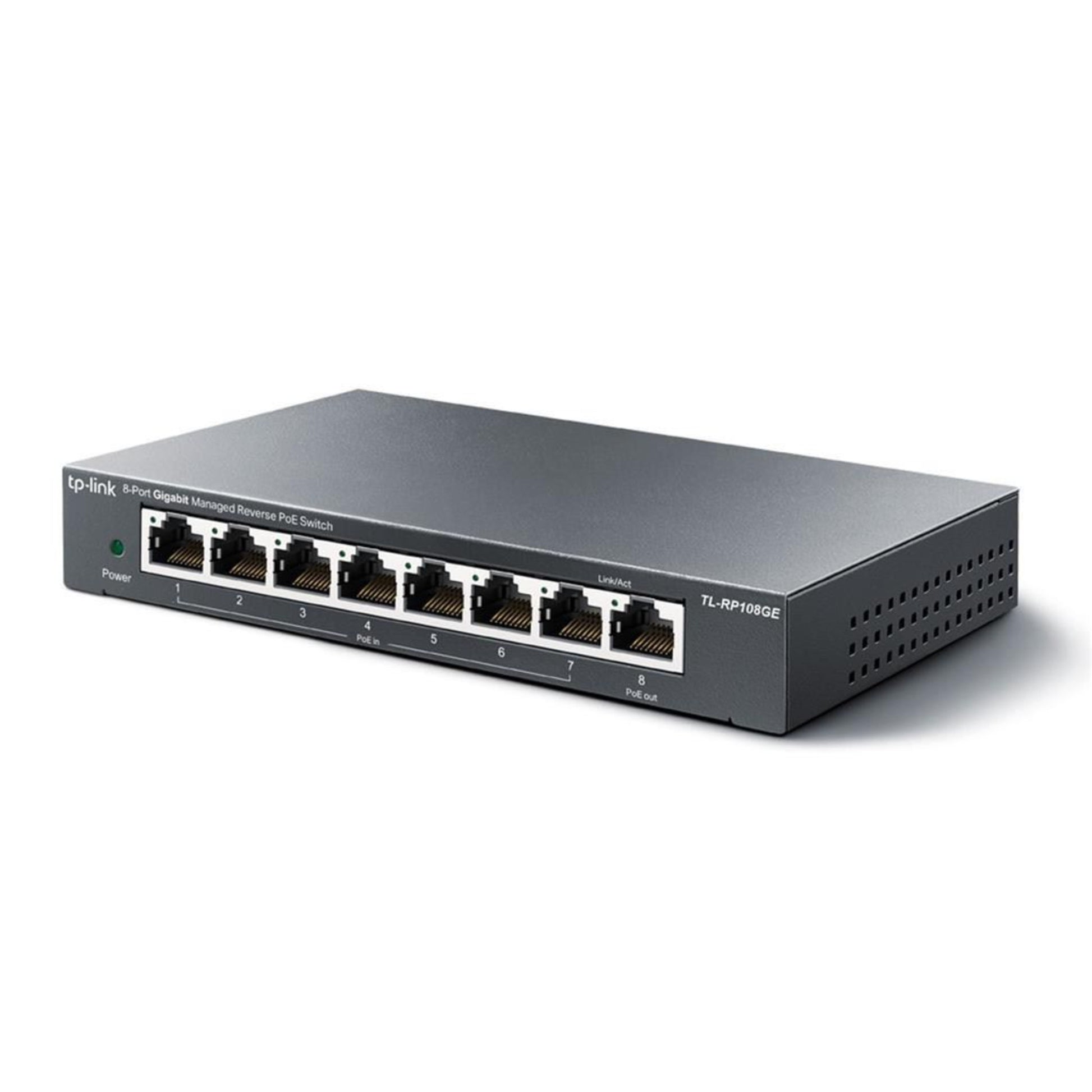

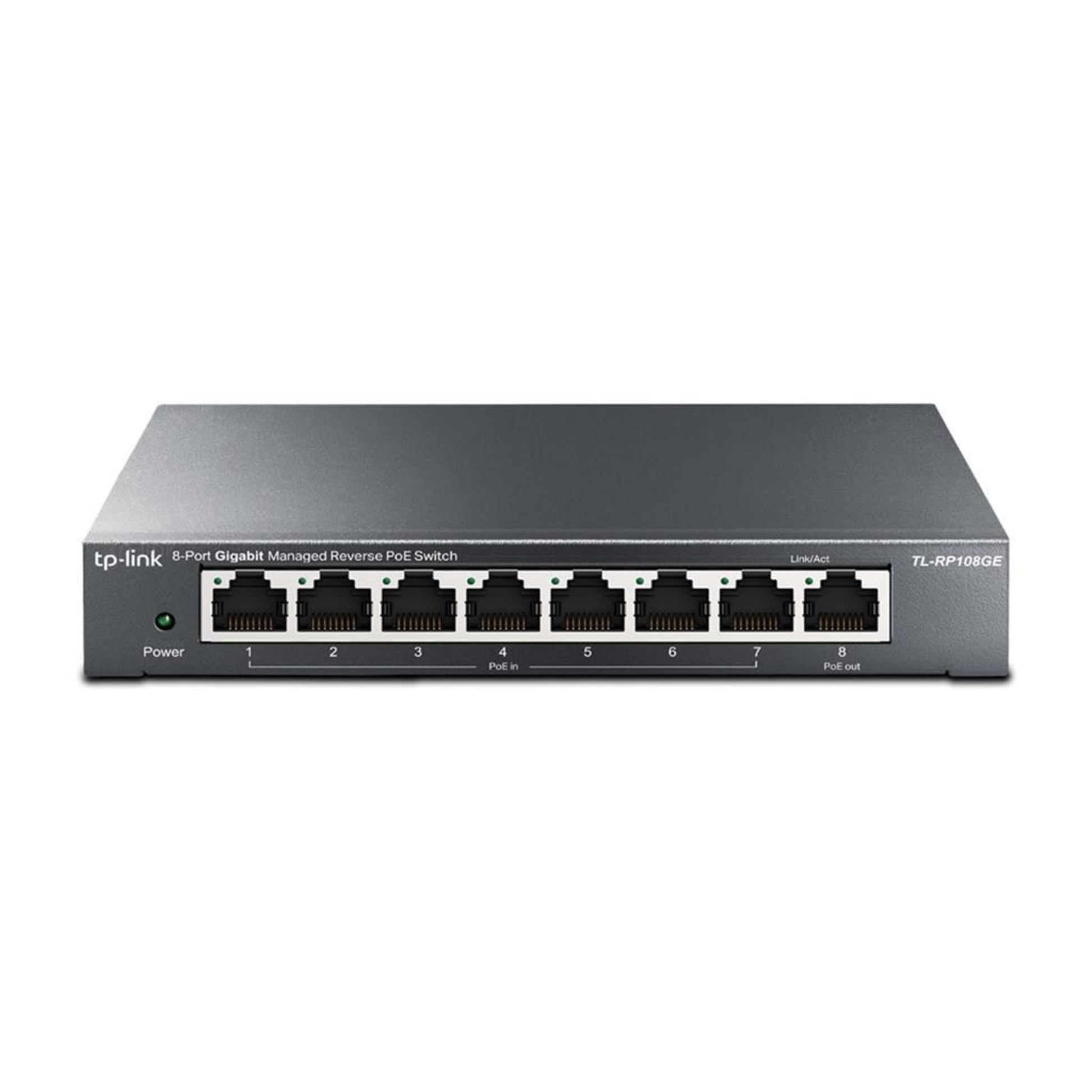

TP-Link 8-Port Gigabit Managed Reverse PoE Switch TL-RP108GE NO Power Supply
TP-Link 8-Port Gigabit Managed Reverse PoE Switch TL-RP108GE NO Power Supply
Regular price
£29.99
Regular price
£43.70
Sale price
£29.99
Taxes included.

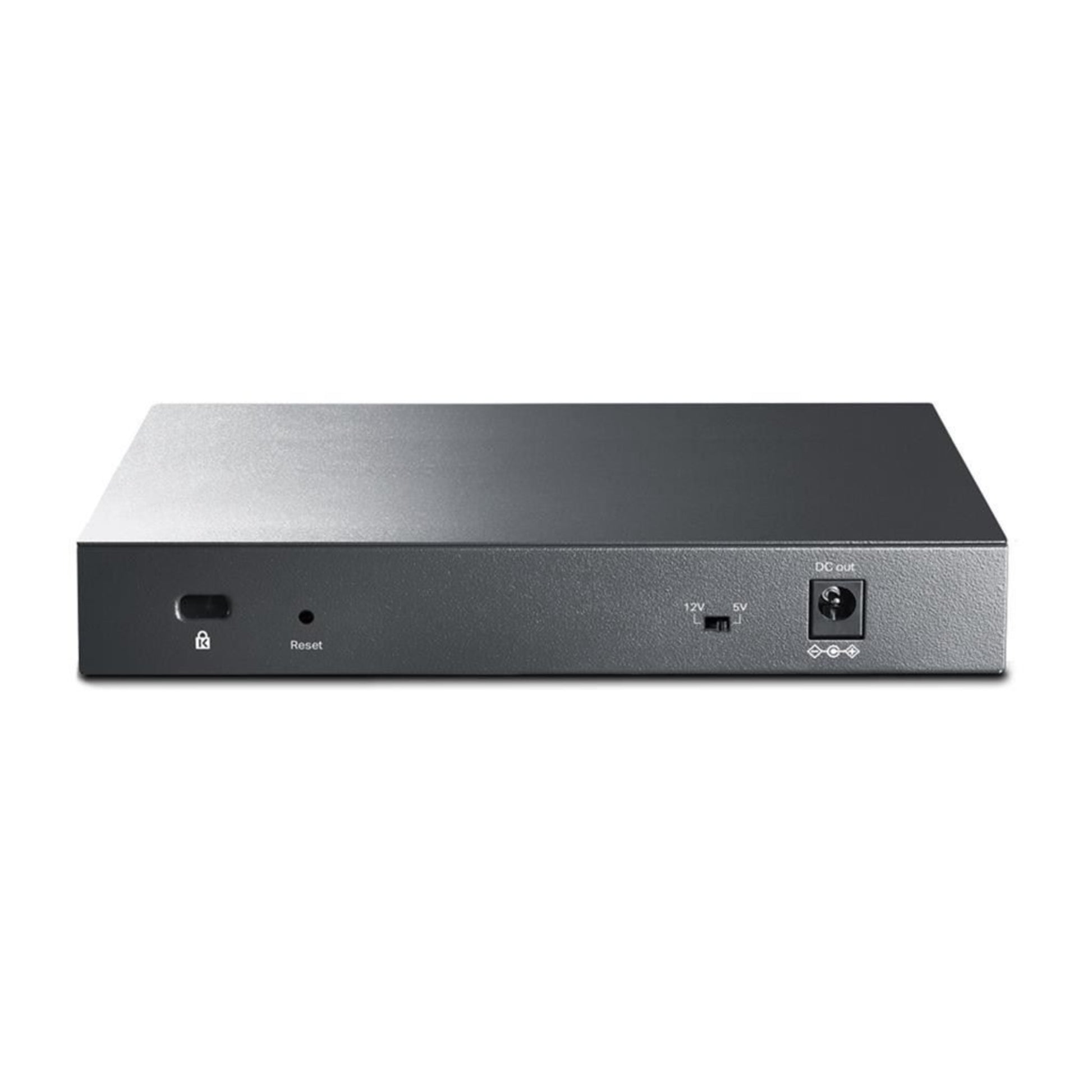

TP-Link 8-Port Gigabit Managed Reverse PoE Switch TL-RP108GEThis switch is a "REVERSE POE SWITCH" it does not require or come with a power supply. The power port on the back of the switch is a "DC OUT" not a "DC IN" Please research what a Reverse switch is before purchasing to ensure that you know what it is, and that you require this type of switch.

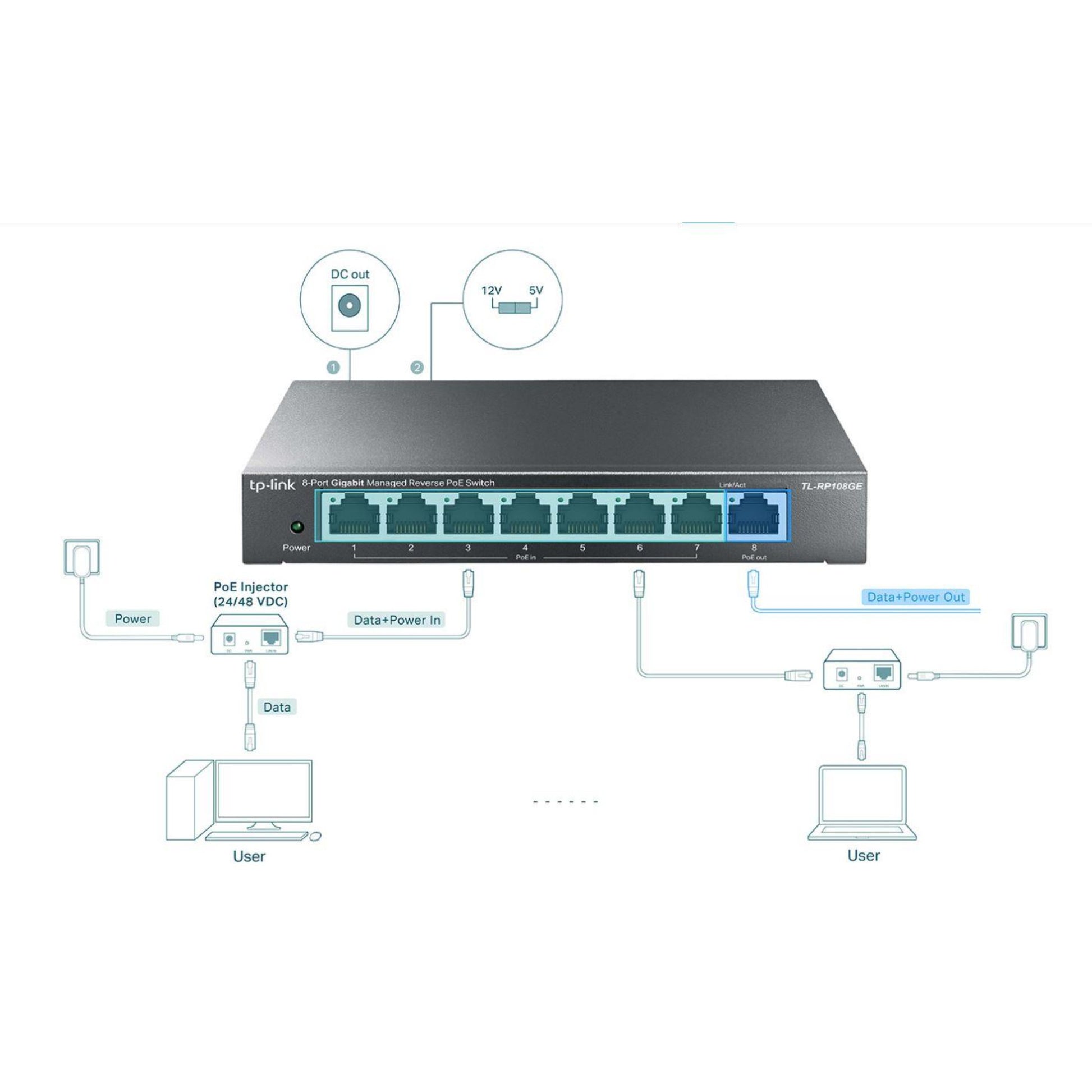

The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Network
- Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x
- 10G support: No
- Port mirroring: Yes
- Full duplex: Yes
- Half duplex: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- VLAN support: Yes
- Virtual LAN feature: Port-based VLAN, Tagged VLAN
- Number of VLANs: 4000
Data transmission
- Switching capacity: 16 Gbit/s
- Forwarding rate: 11.9 Mpps
- MAC address table: 4000 entries
- Store-and-forward: Yes
- Static route: Yes
- Jumbo frames support: Yes
- Jumbo frames: 16000
Security
- IGMP snooping: Yes
- Loop protection: Yes
Design
- Product colour: Black
- Reset button: Yes
- LED indicators: Yes
Power
- Power source: DC
- Power supply included: No
- Input current: 1 A
- Input voltage: 5 V
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
- Power over Ethernet (PoE) type supported: Passive PoE
- Power over Ethernet (PoE) ports quantity: 8
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 158 mm
- Depth: 99.1 mm
- Height: 25 mm
Certificates
- Certification: FCC, CE, RoHS
Logistics data
- Harmonized System (HS) code: 85176990
