UGREEN Revodok Max 213 Thunderbolt 4 Dock, 13-in-1 4K 60Hz 90W Mac and Windows

UGREEN Revodok Max 213 Thunderbolt 4 Dock, 13-in-1, Single 8K or Dual 4K@60Hz Display, 90W Charging, 3x 40Gbps Thunderbolt 4, 5x USB-A and USB-C, 2.5GbE, SD/TF 4.0, Compatible for Mac and Windows PC

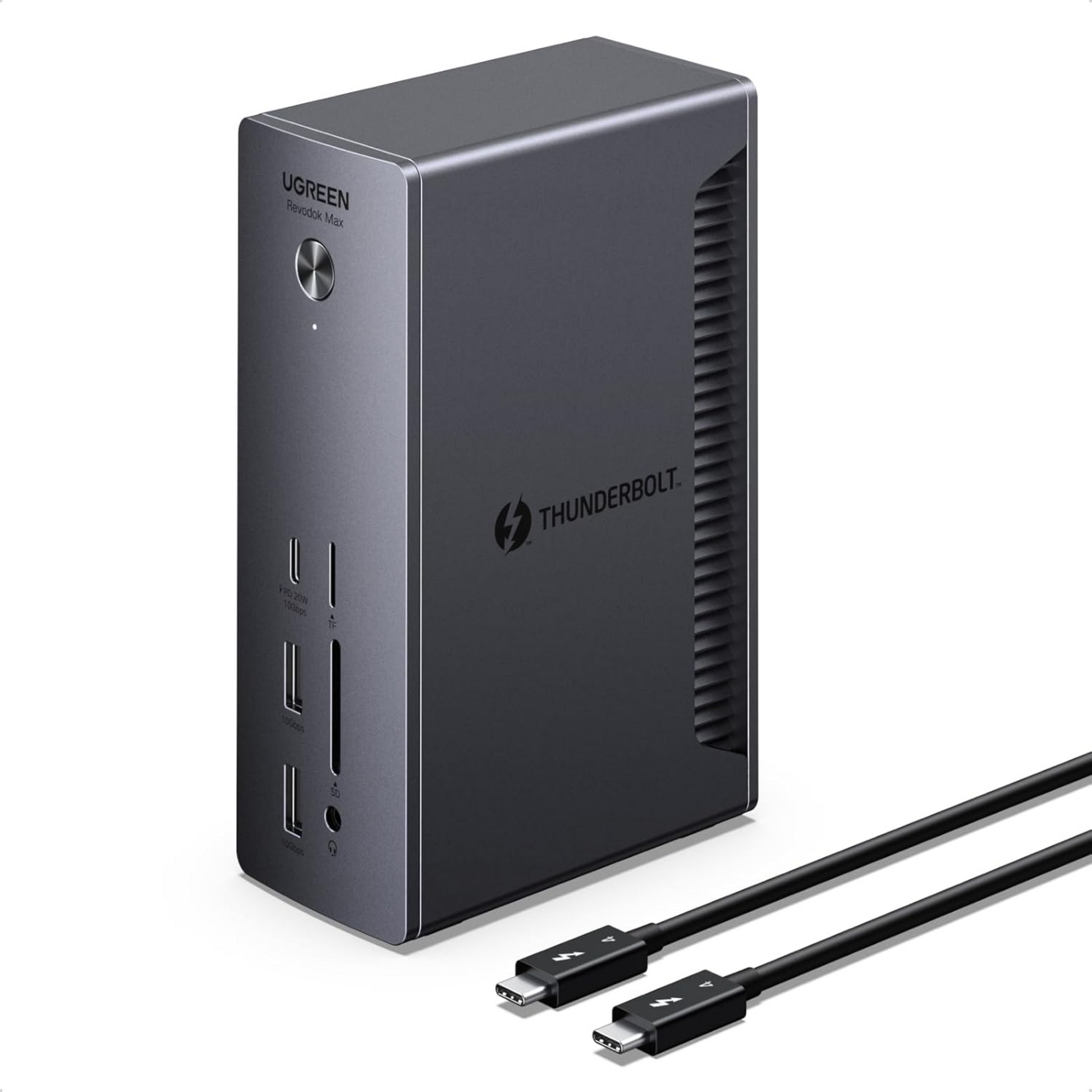

The UGREEN Revodok Max 213 is a premium 13-in-1 Thunderbolt 4 docking station designed to transform a single Thunderbolt or USB-C connection into a complete workstation. Featuring 40Gbps Thunderbolt 4 connectivity, support for single 8K or dual 4K displays, ultra-fast 2.5Gb Ethernet, high-speed USB ports, SD/TF card readers, and up to 90W laptop charging, it delivers the performance professionals need for productivity, content creation, and multi-device setups.

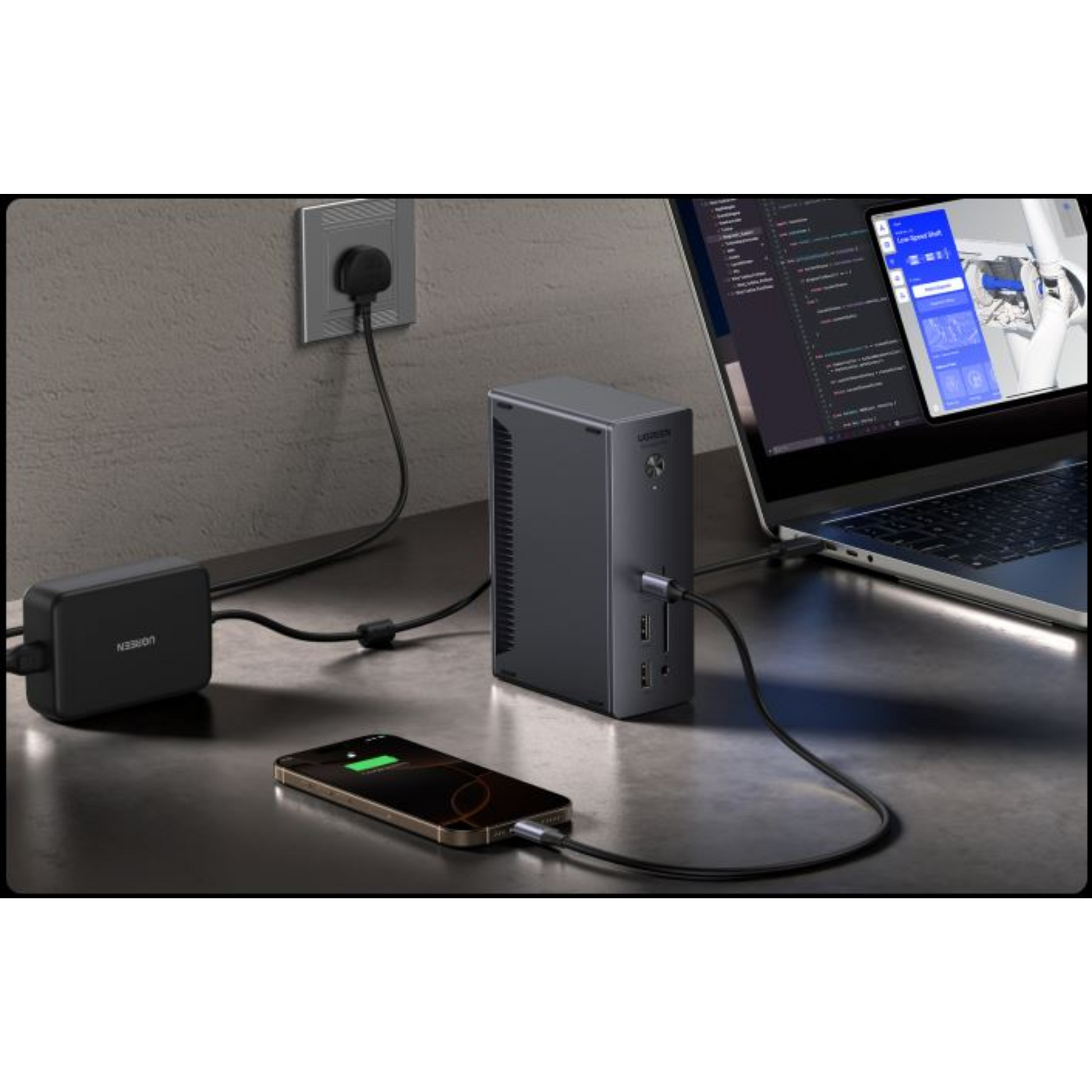

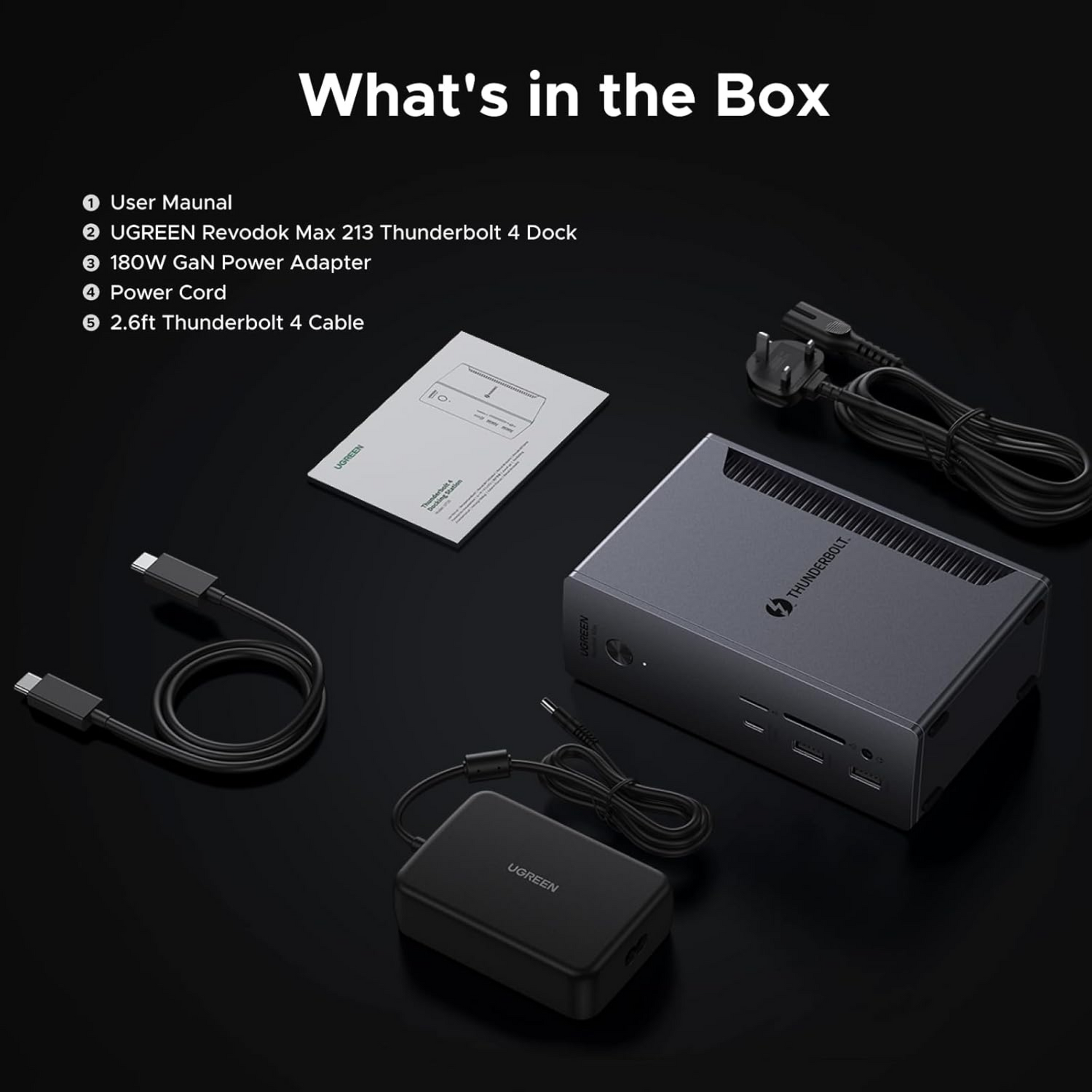

Powered by an included 180W GaN power adapter, the Revodok Max 213 provides reliable power and extensive connectivity for laptops, desktops, and Thunderbolt-enabled devices.

Key Features

• 13-in-1 professional Thunderbolt 4 docking station
• 40Gbps Thunderbolt 4 data transfer speeds
• Supports single 8K@30Hz or dual 4K@60Hz displays
• 90W laptop charging via Thunderbolt 4 host connection

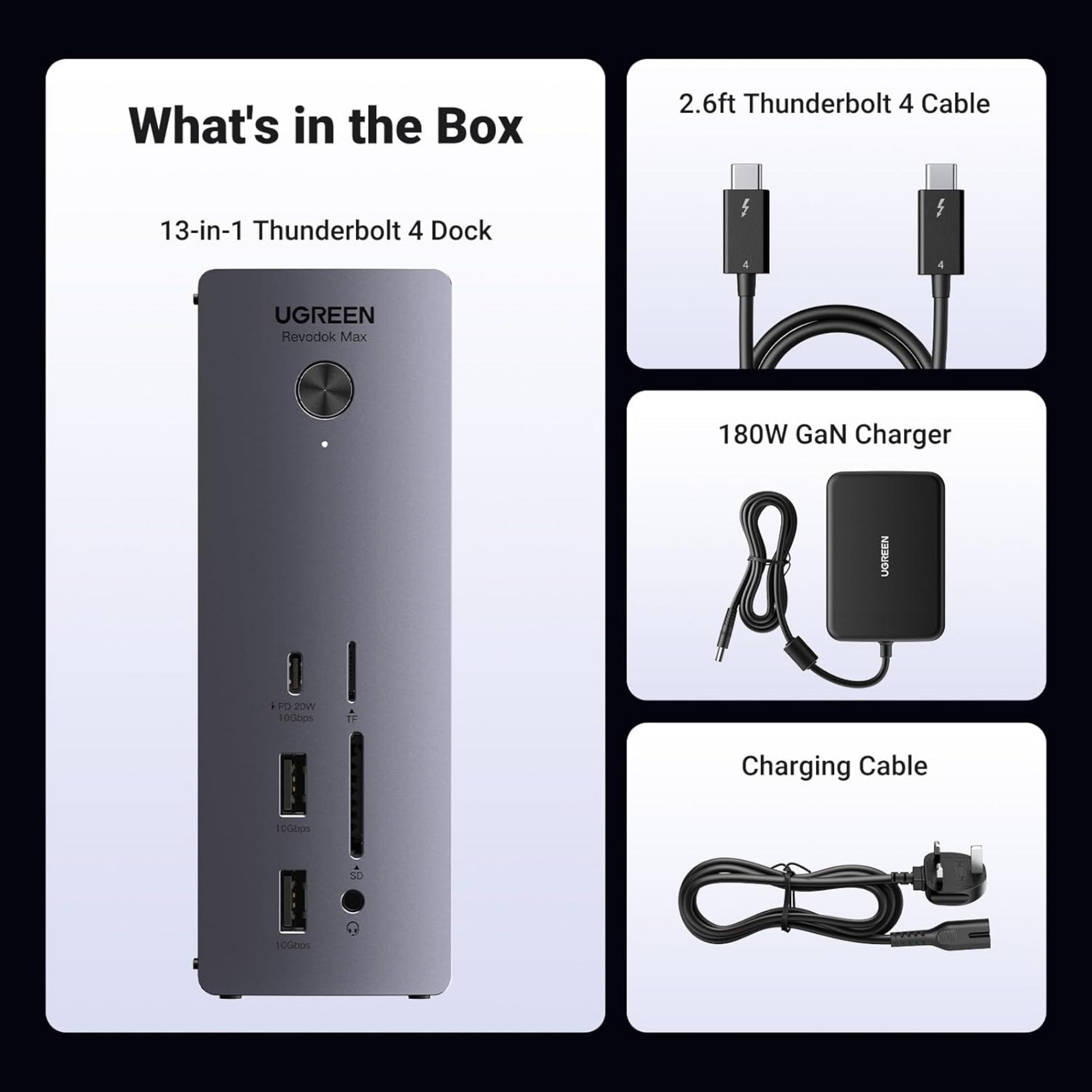

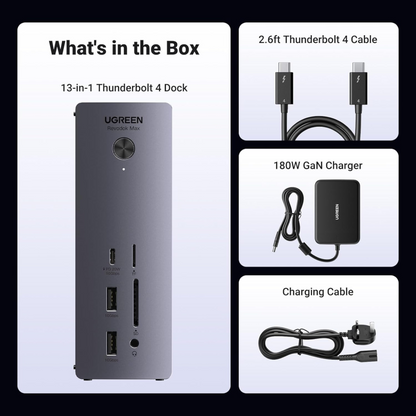

• Includes powerful 180W GaN power adapter
• Dual downstream Thunderbolt 4 ports
• DisplayPort 1.4 video output
• Ultra-fast 2.5 Gigabit Ethernet connection
• USB-C 10Gbps port with up to 20W charging
• Multiple USB-A 10Gbps and 5Gbps ports
• SD and microSD (TF) card reader support
• 3.5mm audio input/output port
• Compatible with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C devices

The UGREEN Revodok Max 213 is an enterprise-grade 13-in-1 Thunderbolt 4 docking station designed to transform your laptop into a high-performance workstation. Encased in a premium, ribbed all-aluminum chassis built for superior heat dissipation, this flagship desktop hub offers a staggering 40Gbps of bandwidth. It is tailored specifically for power users, content creators, and remote professionals who demand elite data transfer speeds, comprehensive peripheral connectivity, and multi-display expansions.

With an included 180W external GaN power supply, the dock delivers a robust 90W of pass-through power directly to your host laptop, eliminating the need for an extra charging brick. It features dual downstream Thunderbolt 4 ports, a dedicated DisplayPort 1.4, ultra-fast 2.5 Gbps Ethernet, and high-speed SD/TF 4.0 card slots. Whether you are editing massive 4K RAW videos, transfering data across external SSDs, or driving immersive ultra-high-definition monitors, the Revodok Max 213 simplifies your entire setup into a single, clutter-free cable experience.

About this item

• 13-in-1 Connectivity: The Revodok Max 213 Thunderbolt 4 Dock includes all the ports you need for fast and seamless connections, 3x 40Gbps Thunderbolt 4 ports(one for host, two downstream), a DisplayPort 1.4, a USB-C data ports(10Gbps,20W), two 10Gbps USB-A data ports, two 5Gbps USB-A data ports, a 2.5Gbps ethernet, SD/TF 4.0 card reader, a 3.5mm audio and a 180W DC-IN.

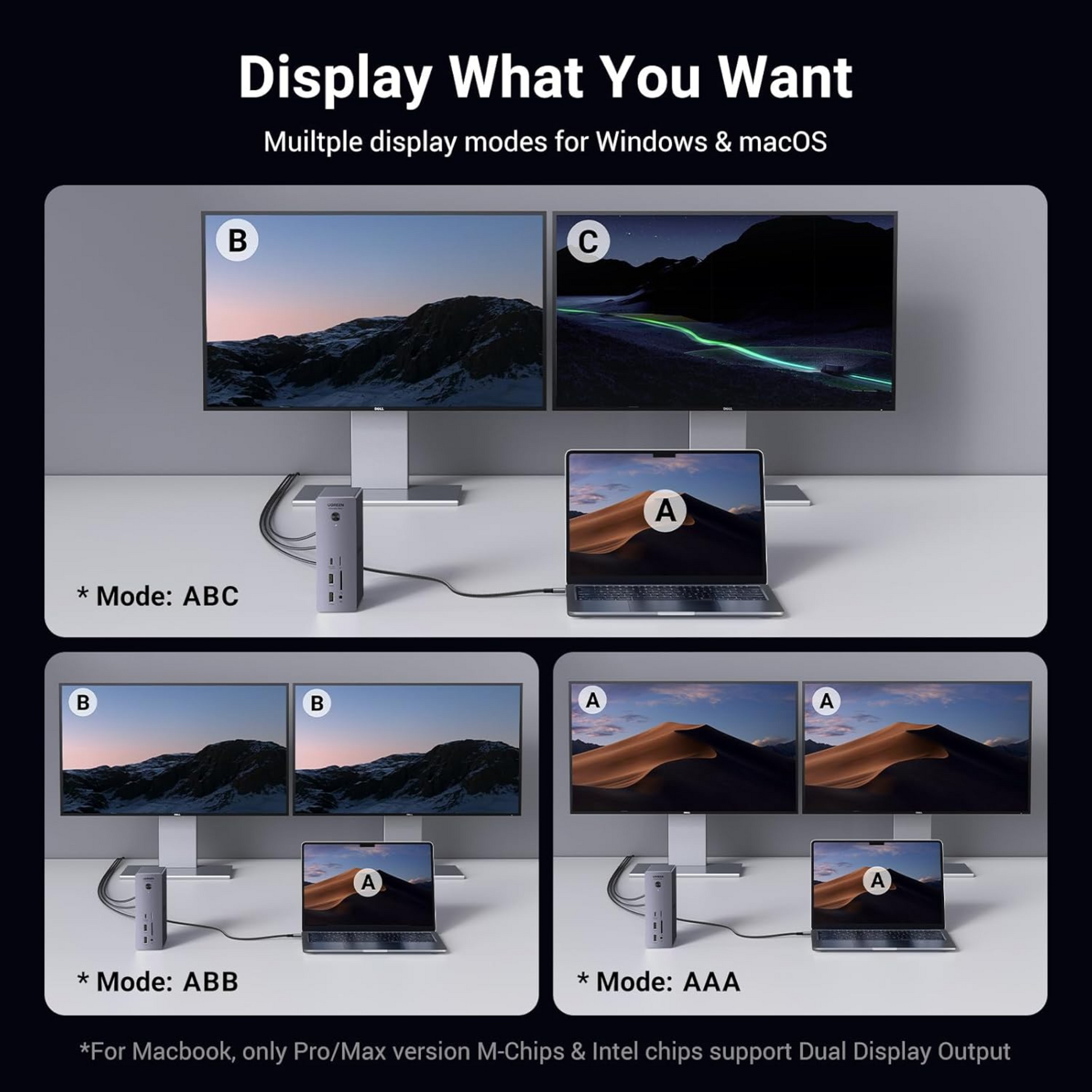

• Dual 4K@60Hz Display: Connect dual displays via Thunderbolt 4 and DisplayPort on the Revodok Max 213 Docking Station at 4K@60Hz, further enhancing your multi-screen productivity and creative workflows. (Note: M-Series Pro, Max, Ultra, or Intel Macs can achieve dual displays; Windows users connect the dock to Thunderbolt 4 for dual display.)

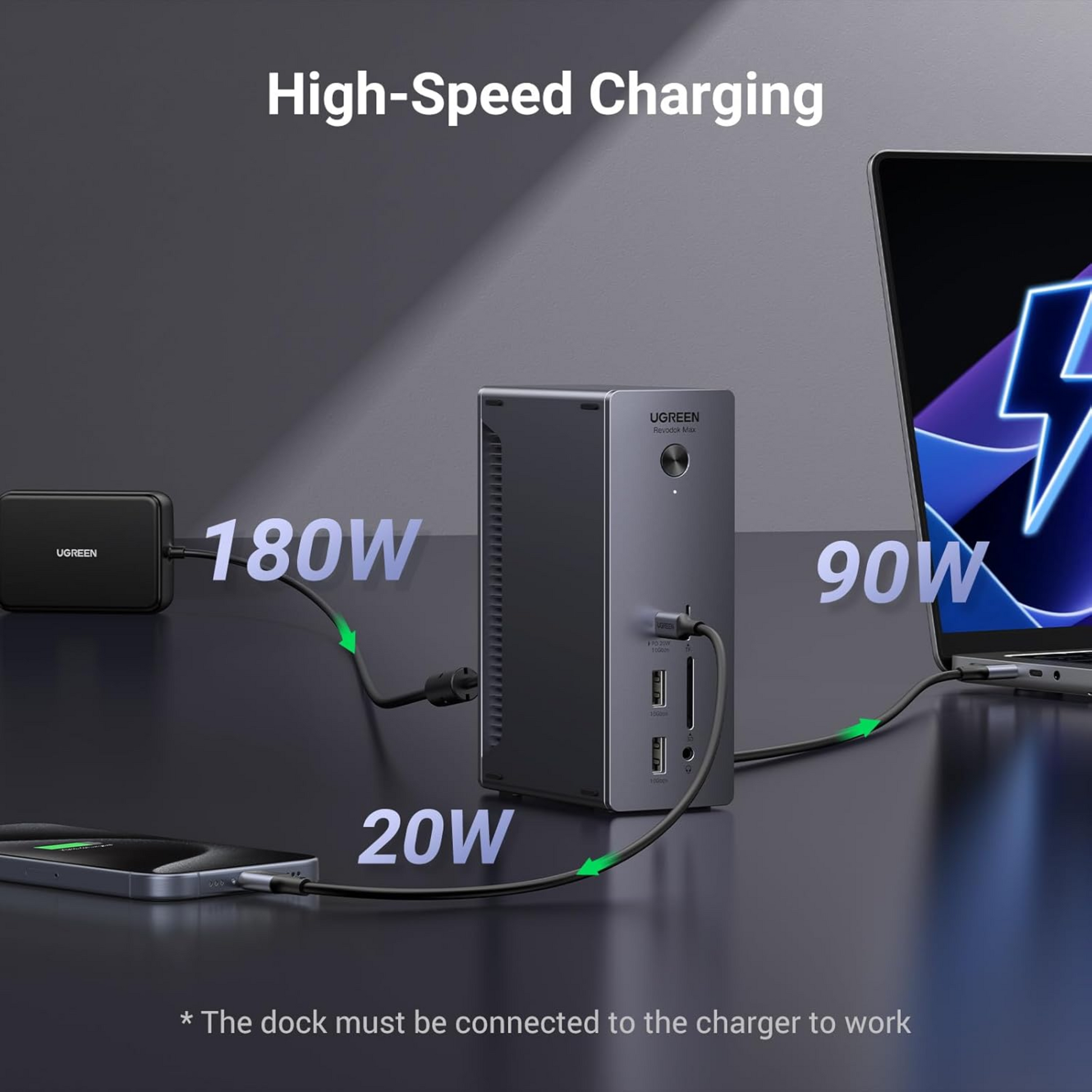

• All-in-One Charging: The Thunderbolt Dock comes with a 180W GaN AC adapter to keep your laptop powered up with 90W max charging through the Thunderbolt 4 upstream port, while also charging your other devices at up to 20W via the front USB-C port.
• Supercharged by Thunderbolt 4: Revodok Max 213 surges ahead with one upstream and two downstream Thunderbolt 4 ports, allowing you to display media to a single 8K monitor and transfer files at speeds up to 40 Gbps simultaneously.
• 2.5 Gigabit Ethernet: The Revodok Max 213 features a 2.5Gbps Ethernet port, providing a 2.5X speed boost compared to standard 1GbE, enabling users to connect to faster networks, routers, and NAS devices.

13-in-1 Massive Expansion:
Consolidates your workspace by expanding a single laptop port into 13 dedicated interfaces, including Thunderbolt 4, high-speed USB-A/USB-C, DisplayPort, Ethernet, audio, and card readers.

Next-Gen Thunderbolt 4 Speeds:
Equipped with three Thunderbolt 4 ports (1x upstream host, 2x downstream) offering blistering data transfer rates up to 40Gbps—ideal for daisy-chaining multiple devices and high-speed external storage.

Stunning Dual 4K or Single 8K Display:
Boosts visual productivity by supporting dual external monitors up to 4K@60Hz or a single, ultra-crisp 8K@30Hz display via the Thunderbolt 4 and DisplayPort 1.4 outputs (dual display requires compatible OS/GPU support).

90W Power Delivery:
Leverages its external 180W GaN power system to safely fast-charge your host laptop at up to 90W while simultaneously powering all connected peripherals.

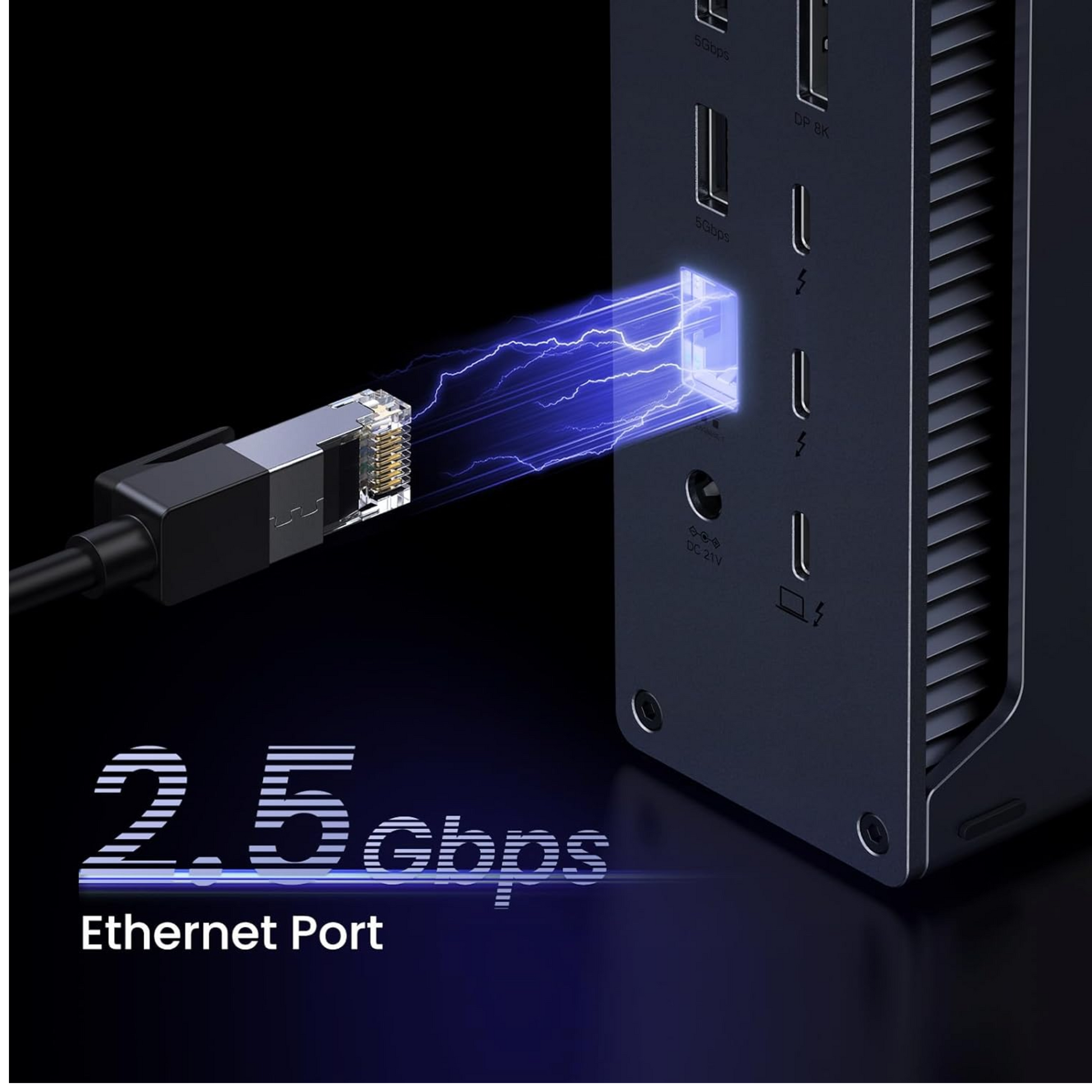

Blazing-Fast 2.5G Ethernet:
Features a 2.5 Gigabit RJ45 Ethernet port, delivering stable, ultra-reliable wired internet connection that is 2.5x faster than standard Gigabit networks for lag-free streaming, large file uploads, and online gaming.

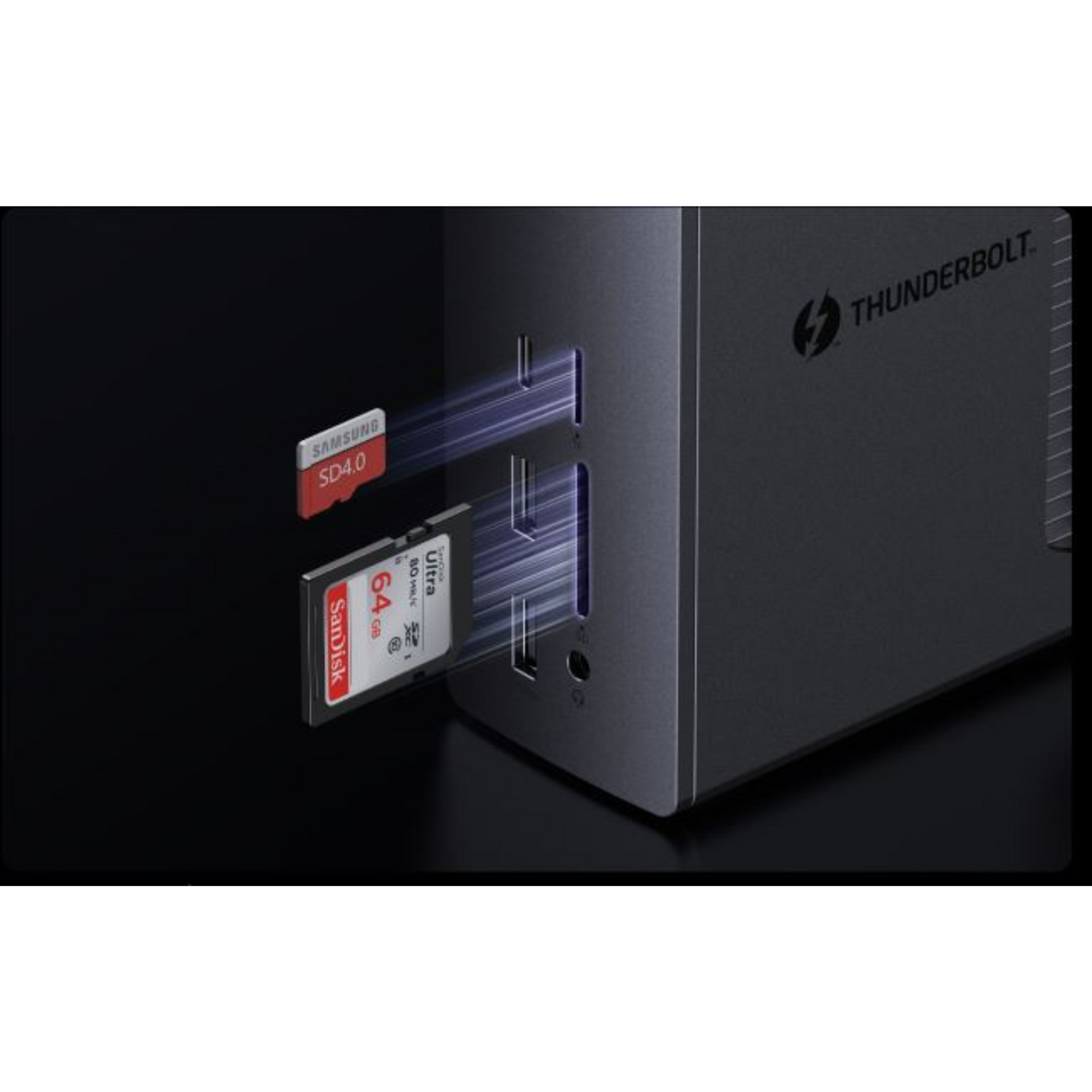

Photographer-Friendly SD/TF 4.0 Slots:
Built-in SD and Micro SD (TF) 4.0 card slots support simultaneous reading and writing with top-tier transfer speeds up to 312MB/s to quickly offload media from cameras.

High-Speed USB Ports:
Provides a comprehensive array of USB ports, including 1x front-facing USB-C 3.2 (10Gbps with 20W PD charging), 2x USB-A 3.2 (10Gbps), and 2x legacy USB-A 3.0 (5Gbps).

Premium Aluminum Thermal Design:
Engineered with a rugged matte-grey aluminum shell featuring specialized pleated cooling fins and internal thermal silica gel to keep the unit cool and operational under heavy computing loads.  Universal Compatibility: Seamlessly integrates with Thunderbolt 4, Thunderbolt 3, USB4, and standard USB-C devices across modern operating systems like macOS 11.4+ and Windows 10+.

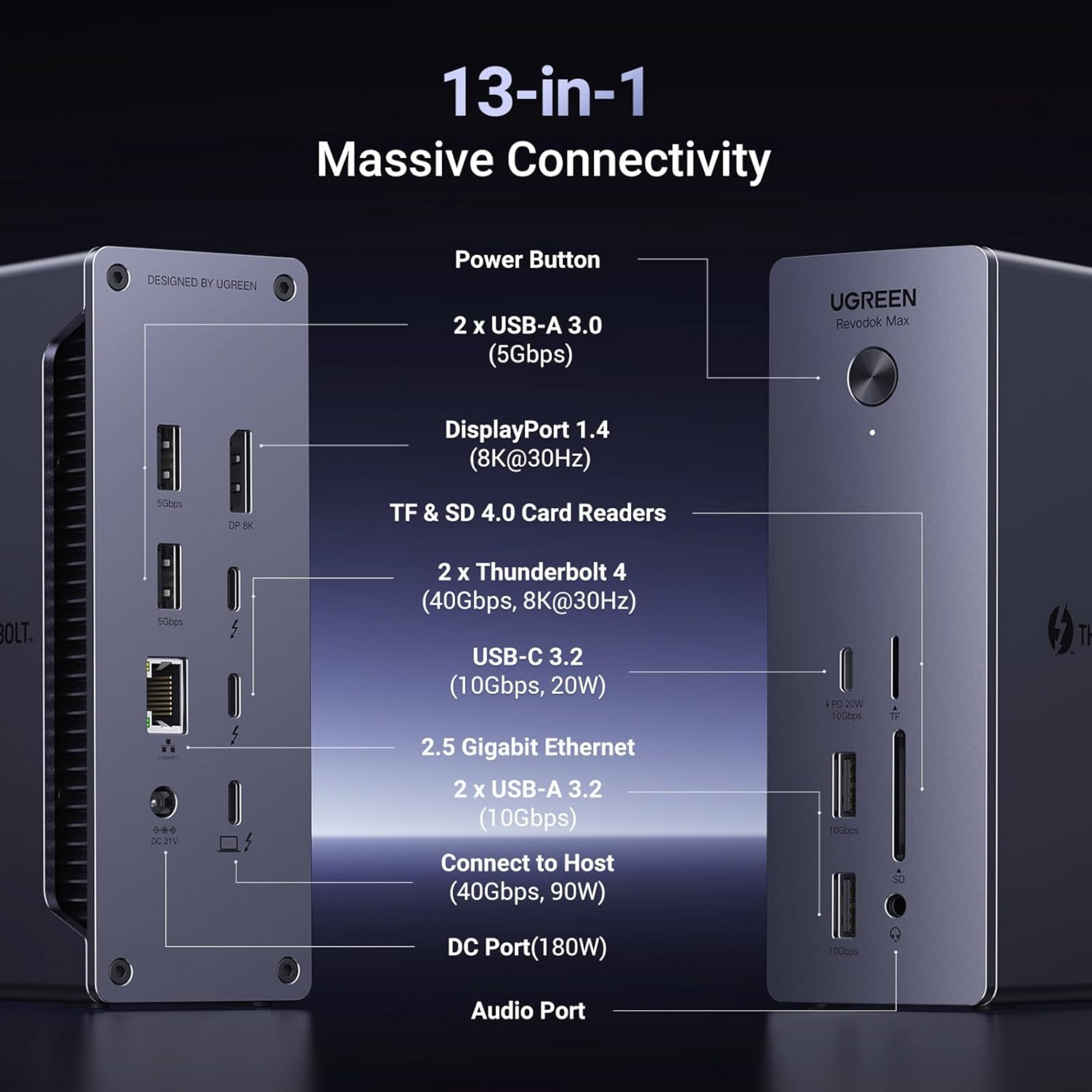

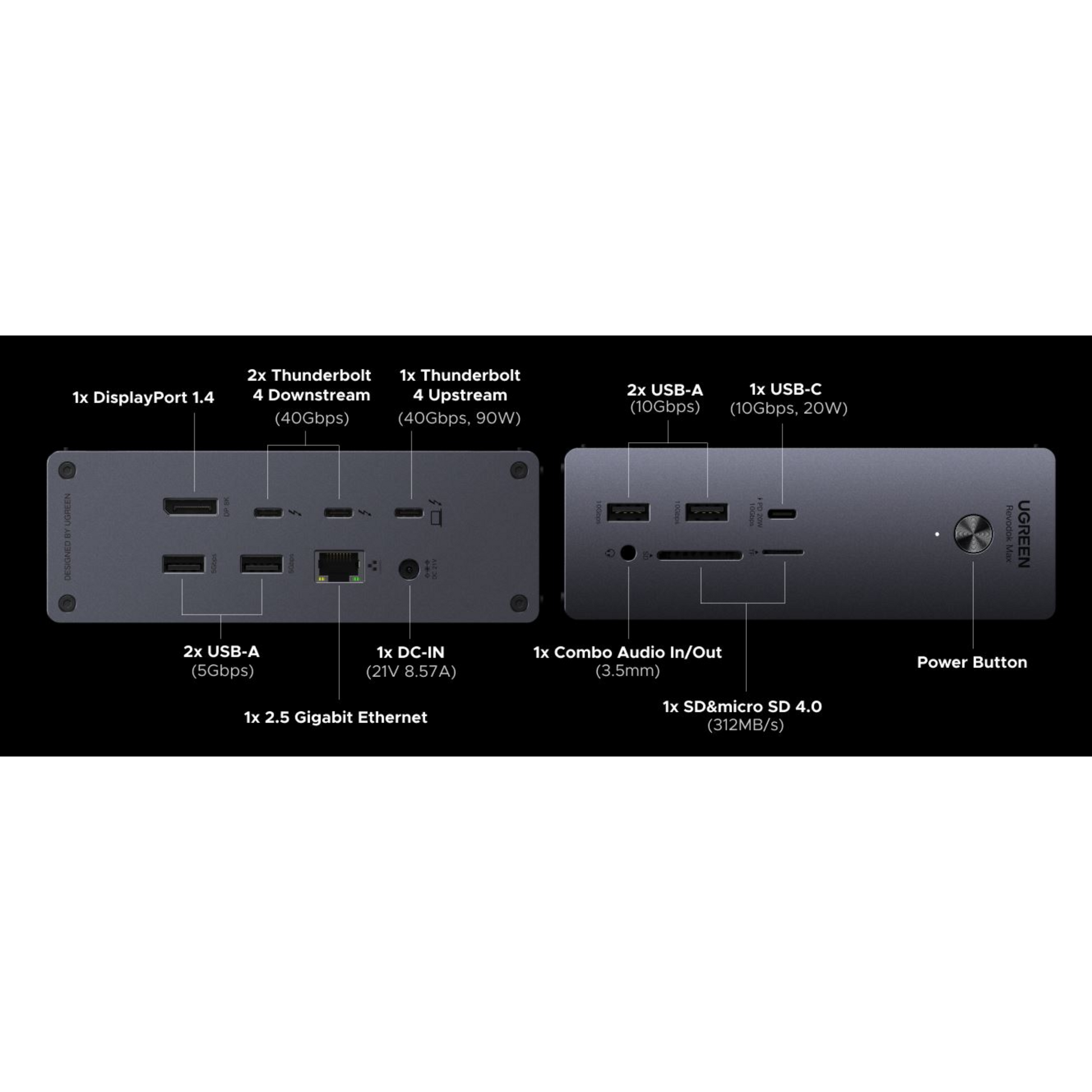

Port Configuration

• 1 × Thunderbolt 4 Host Port (90W Power Delivery)
• 2 × Thunderbolt 4 Downstream Ports (40Gbps)
• 1 × DisplayPort 1.4
• 1 × USB-C 3.2 Gen 2 (10Gbps, 20W)
• 2 × USB-A 3.2 Gen 2 (10Gbps)
• 2 × USB-A 3.0 (5Gbps)
• 1 × 2.5Gb Ethernet Port
• 1 × SD Card Reader
• 1 × microSD (TF) Card Reader
• 1 × 3.5mm Audio Jack
• 1 × DC Power Input (180W)

Notes

• 1. Apple Silicon MacBooks may experience system crashes or kernel panics when used with Thunderbolt 4 dock under macOS versions 12.0 to 12.2.1, please update your macbook to the latest macOS version.
• 2. The minimum systems specification required to use this dock is macOS 11.4 and Windows 10(20H2) and above. Not support macOS 12.0 to 12.2.1, ChromeOS and Linux systems.
• 3. Apple Silicon MacBooks with M1 / M2 / M3 Base chips and Intel Thunderbolt 3 MacBook support only one external display. MacBooks with M1 / M2 / M3 Pro or Max chips, and all M4 models, support dual displays.
• 4. Windows laptops with Full-Function USB-C ports can only connect to one external monitor. Windows laptops with Thunderbolt 4, USB4 supports dual displays.
• 5. For full compatibility, ensure your laptop's USB-C port supports both Power Delivery and DisplayPort 1.2/1.4 Alt Mode, in addition to either USB4, Thunderbolt 4.
