Yale Doormaster YDM-ONPVC-D35TF 35mm GU PVCu Door Latch Deadbolt Single Lock
Yale Doormaster YDM-ONPVC-D35TF 35mm GU PVCu Door Latch Deadbolt Single Lock
Regular price
£34.99
Regular price
£44.99
Sale price
£34.99
Taxes included.
Yale Doormaster Overnight PVCu Door Lock – 35mm GU Latch & Deadbolt, Single Follower

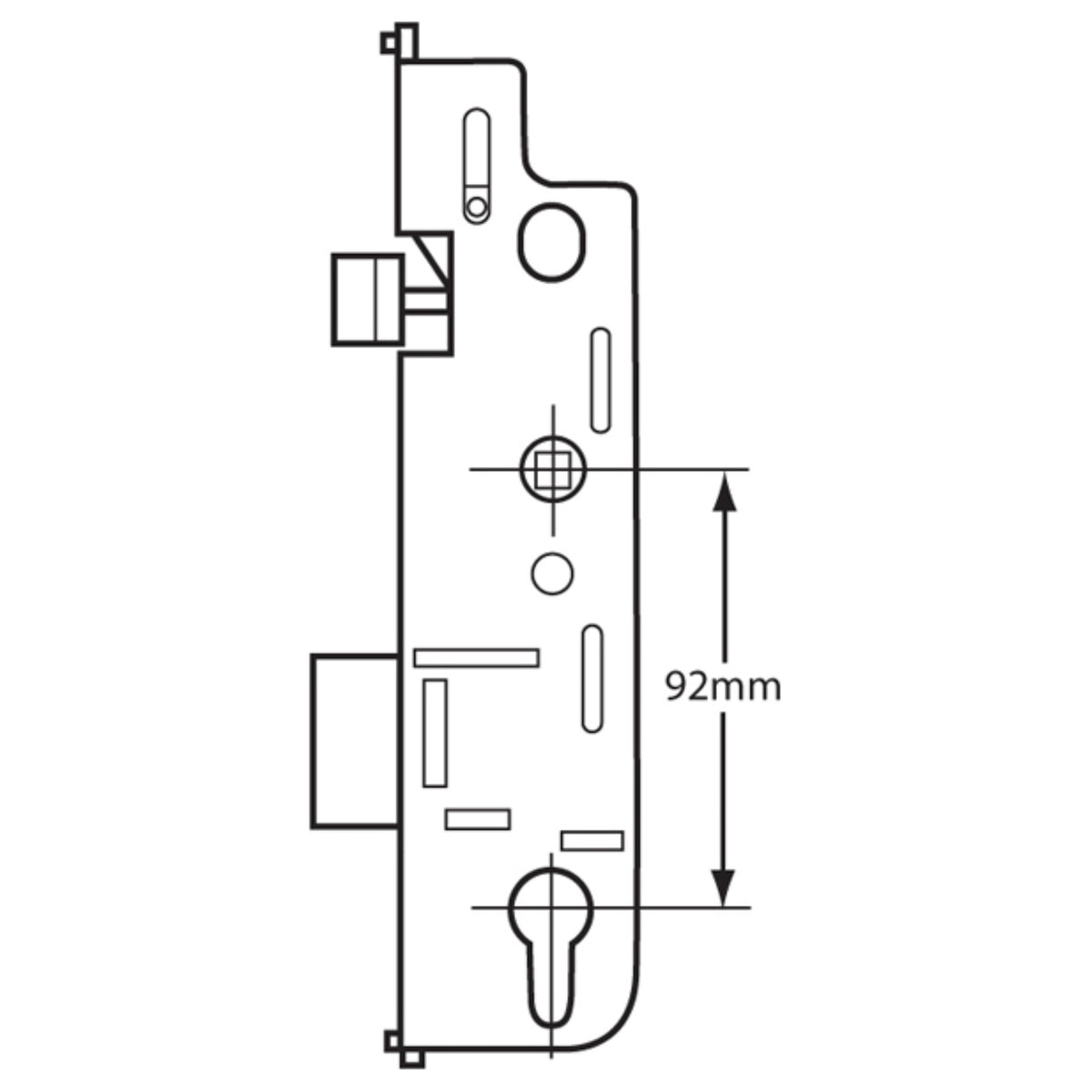

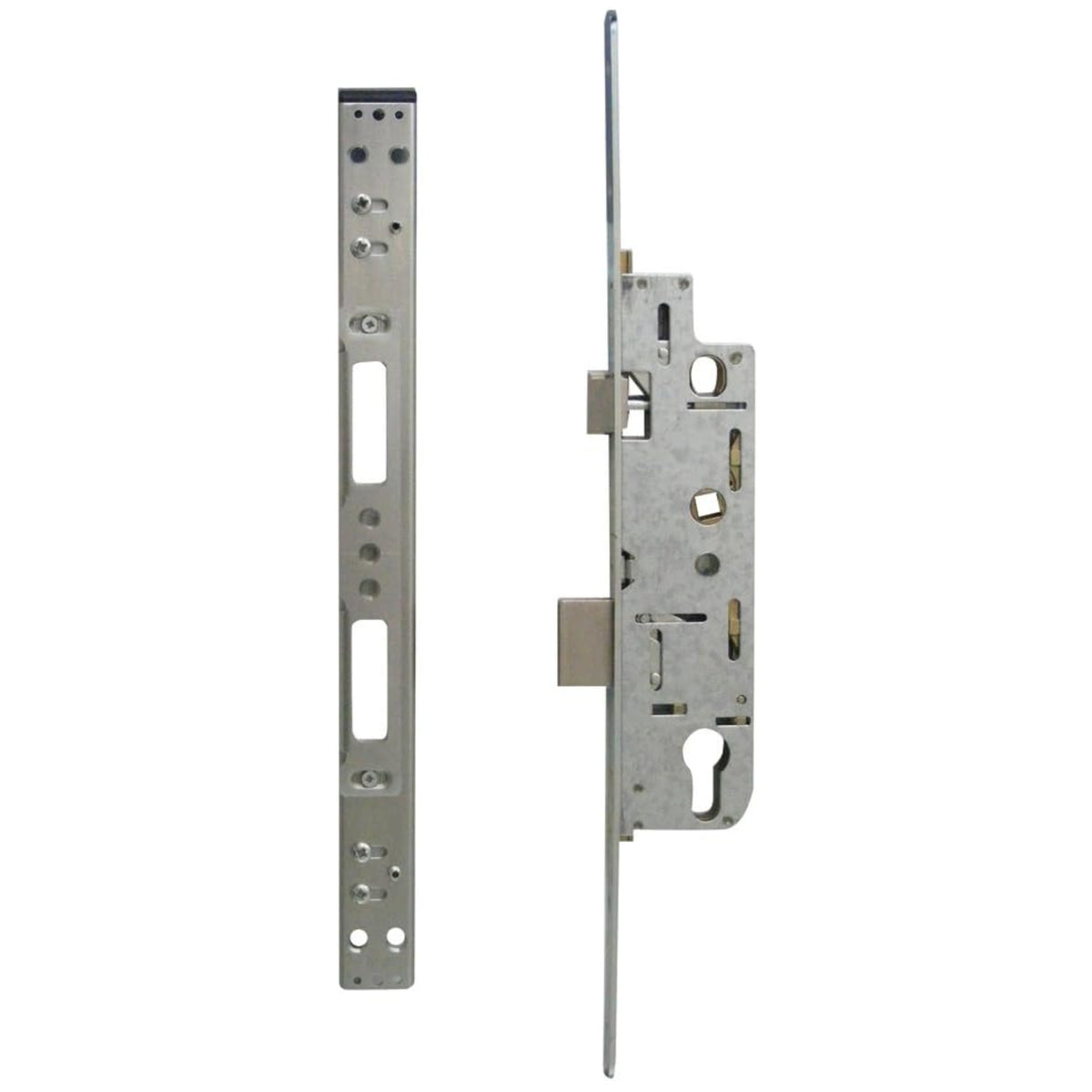

The Yale YDM-ONPVC-D35TF Doormaster Overnight Lock is a replacement locking mechanism designed for compatible PVCu (uPVC) doors fitted with a GU latch and deadbolt multipoint locking system. With a 35mm backset and 16mm faceplate, this lock provides a practical solution for professional door installers carrying out repairs or replacing a faulty central gearbox.
Part of Yale's Doormaster Overnight range, it is designed as a temporary security solution for professional use. The lock features a latch and deadbolt mechanism with a single follower configuration, making it suitable for compatible GU locking systems that require this arrangement. Its shortened faceplate and attached central gearbox help simplify replacement work, while the pre-assembled keep with Yale's Uni-packer system supports easier installation.
Finished in grey metal, this Yale replacement lock is ideal for locksmiths, maintenance professionals and door repair specialists. Before ordering, check the existing lock's backset, faceplate width, follower configuration and overall dimensions to ensure the correct replacement is selected.
Key Features
- Genuine Yale Doormaster Accessory – Model YDM-ONPVC-D35TF, designed for compatible PVCu door locking systems.
- 35mm Backset – Suitable for door installations requiring a 35mm backset.
- GU Latch & Deadbolt Compatibility – Designed to suit compatible GU latch and deadbolt locking arrangements.
- Single Follower Design – Features a single spindle follower configuration for compatible door handles.
- 16mm Faceplate – Narrow faceplate designed for suitable PVCu door profiles.
- Overnight Replacement Lock – A temporary replacement locking solution intended primarily for professional installers.
- Pre-Assembled Keep – Supplied with a keep incorporating Yale's Uni-packer system to help simplify fitting.
- Durability Tested – Yale's Doormaster Overnight range is endurance-tested to 50,000 cycles and corrosion-tested to BS EN 1670:2007 Grade 4.
Detailed Specifications
- Brand Yale
- Product Range Doormaster Overnight
- Model / Part Number YDM-ONPVC-D35TF
- Yale Description DM On PVCu Dead 35 (GU Through Follower)
- Product Type PVCu Door Replacement Lock
- Locking Mechanism Latch and deadbolt
- Backset 35mm
- Faceplate Width 16mm
- Follower Type Single / through follower
- Door Material PVCu / uPVC
- Lock Configuration GU latch and deadbolt compatible
- Installation Type Replacement central gearbox with shortened faceplate
- Keep Pre-assembled keep with Uni-packer system
- Endurance Testing 50,000 cycles
- Corrosion Resistance BS EN 1670:2007 Grade 4, 240 hours
- Intended User Professional installers and locksmiths
- Colour / Finish Grey metal
