Yale YDM-ONPVC-H45SF Doormaster PVC Door Hook 45mm YS170 Split Follower Lock

Yale YDM-ONPVC-H45SF Doormaster PVC Door Hook 45mm YS170 Split Follower Lock

Regular price £32.99
Regular price £51.74 Sale price £32.99
Sale Sold out
Taxes included.

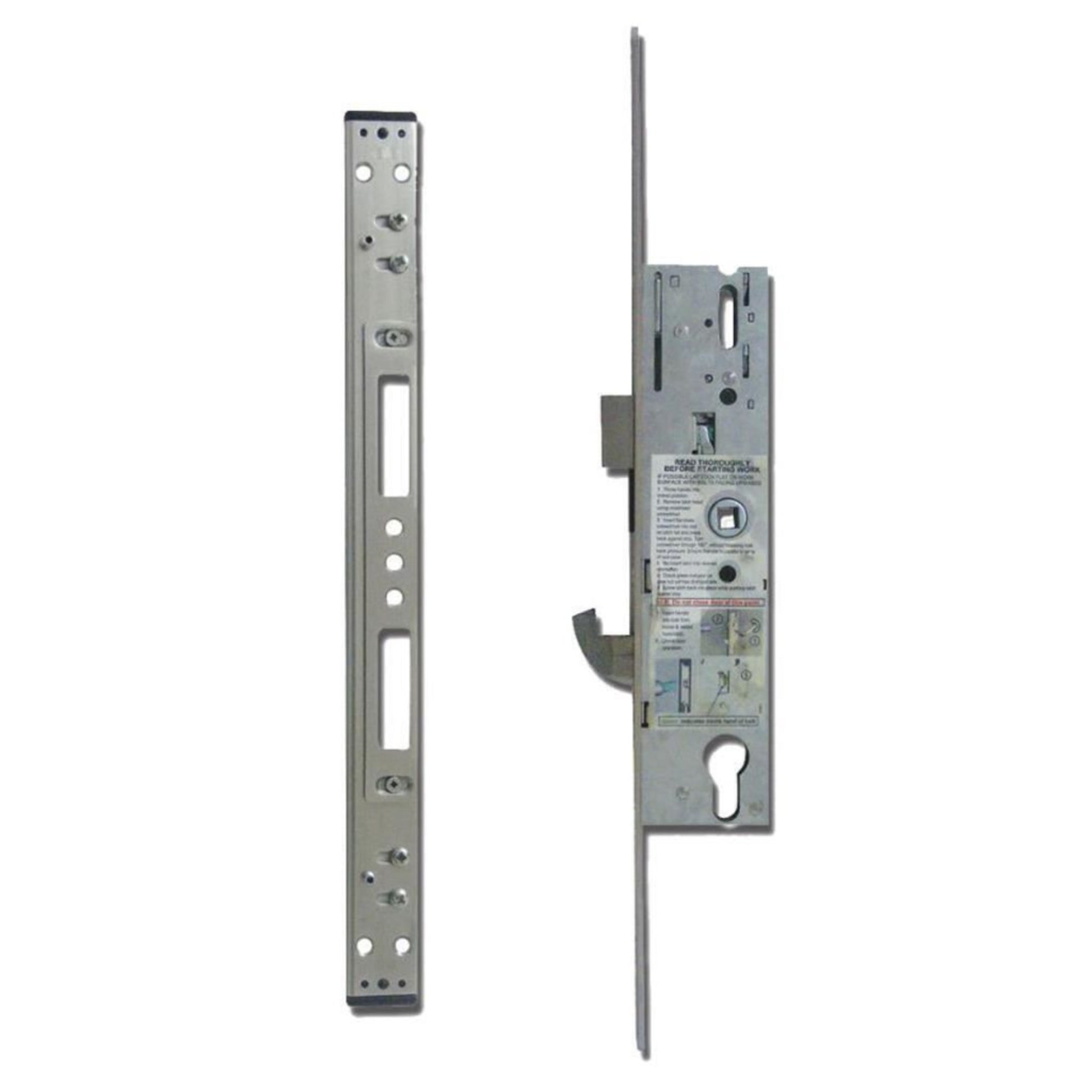

A Yale door master lever operated latch and hookbolt overnight lock with split spindle, 20mm faceplate and 92mm centres.

About this item
  • The Yale Doormaster Overnight Lock is a standard security cost effective temporary replacement that fits the majority of PVC and Composite doors
  • Installation requirements: The lock requires Professional installation

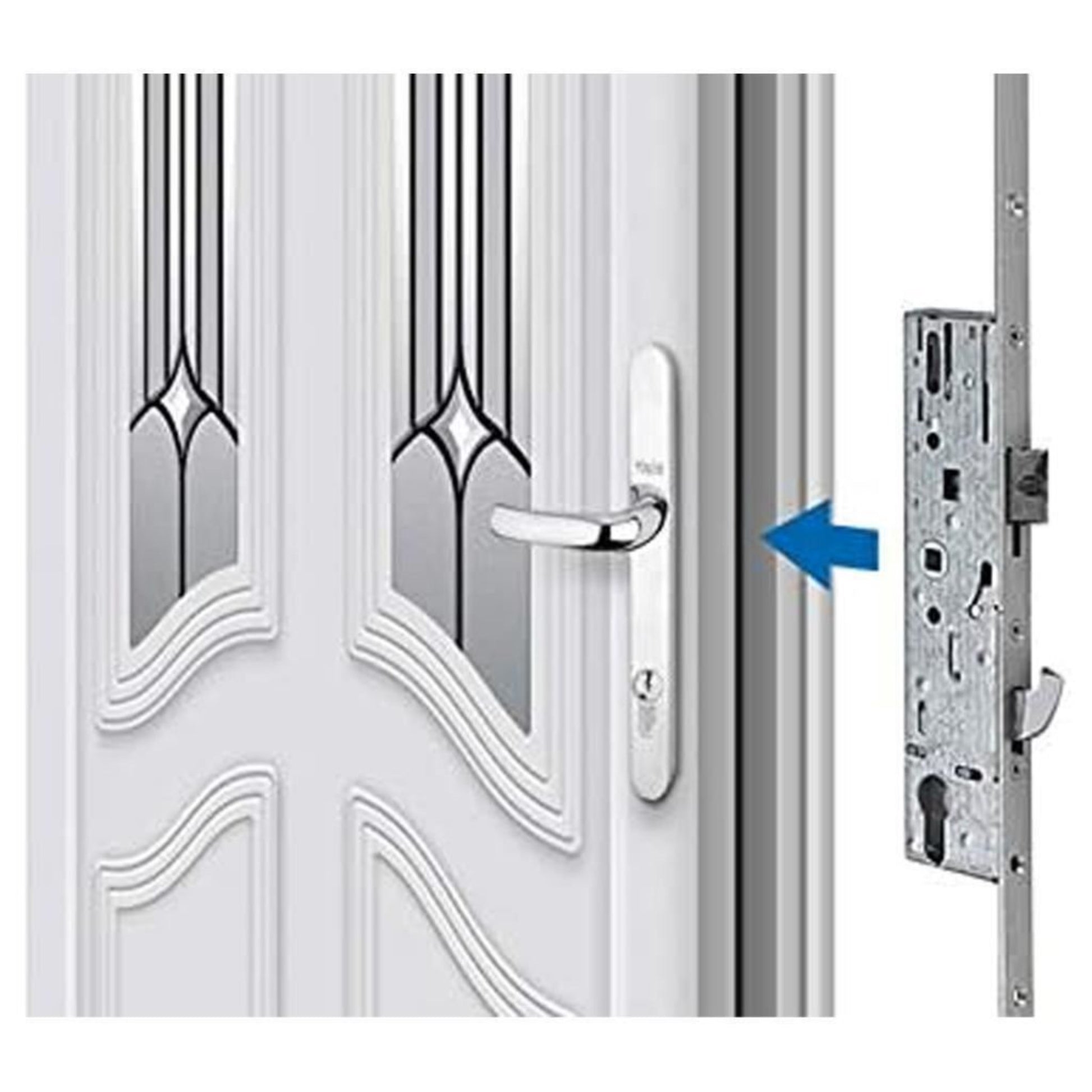

  • Door Type: Designed to replace almost all UK PVC and Composite door locks

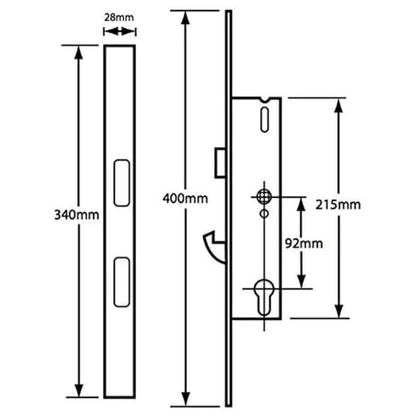

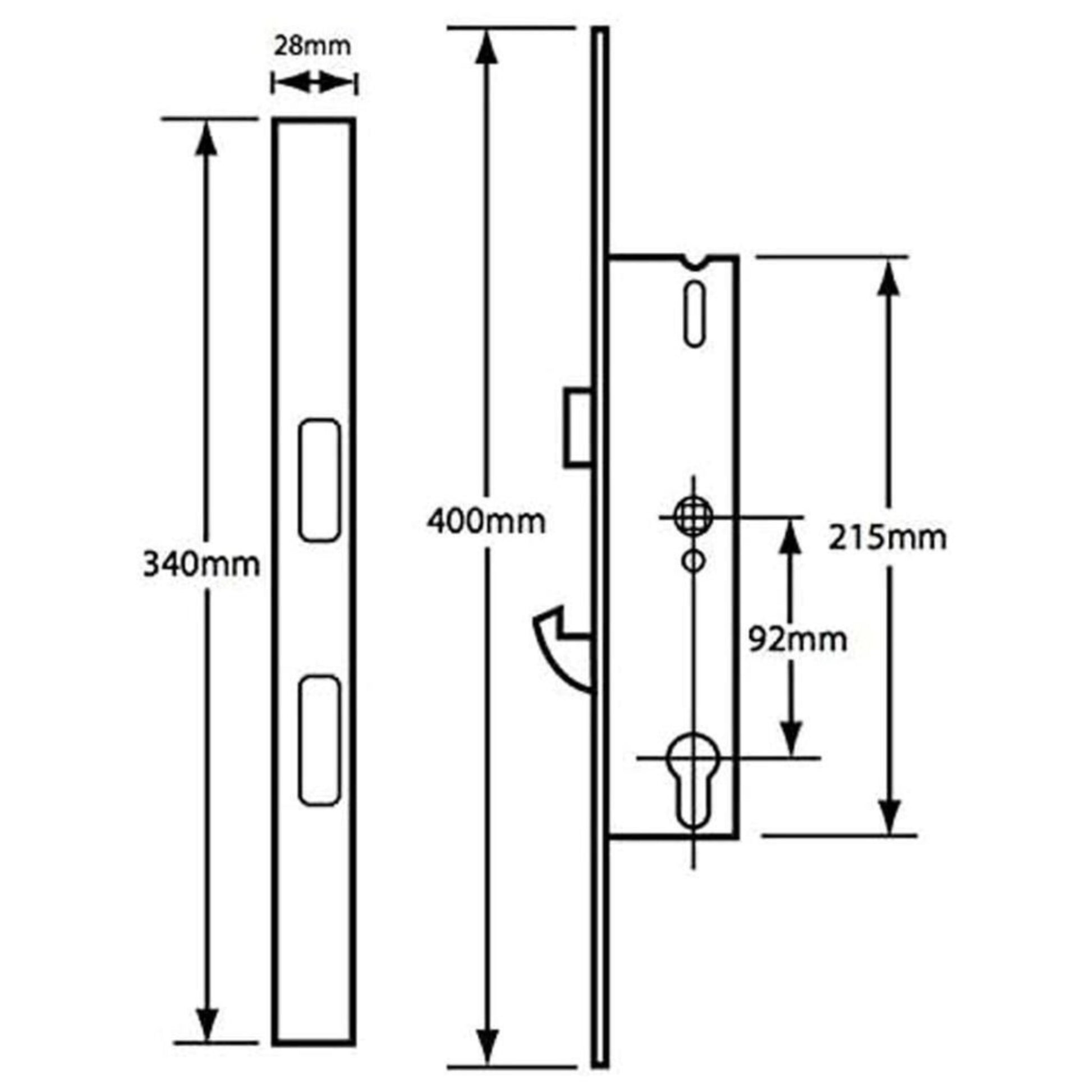

  • Dimensions: The overnight lock has a backset of 45mm, faceplate of 20mm
  • Pack includes: 1 overnight lock with shortened faceplate and centre gearbox attached
  • Fixtures and fittings included
  • Euro profile lock case
  • Latch & hookbolt
  • 20mm Faceplate
  • Split spindle
  • Faceplate and strike to suit timber doors

Specifications
  • Brand - Yale Doormaster
  • Backset - 45mm
  • Barcode - 5010609308778
  • Case Height - 215mm
  • Case Width - 60mm
  • Centres - 92mm
  • Centre Case - Latch & Hookbolt
  • Cylinder Finish - Chrome Plated
  • Faceplate Width - 20mm
  • Select a Finish - Anthracite Grey
  • Packaging - No
  • Manufacturer Reference - YDM ONPVC H45SF
  • Operation - C - One full turn of the key to lock and one full turn of the key then push down on the lever to unlock.
